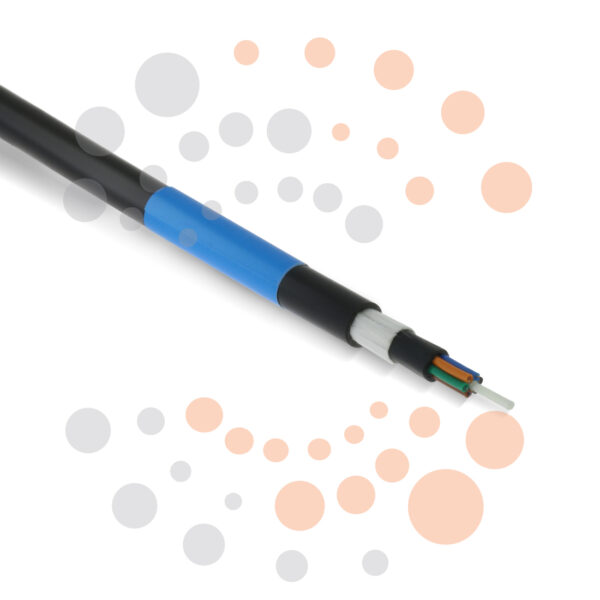

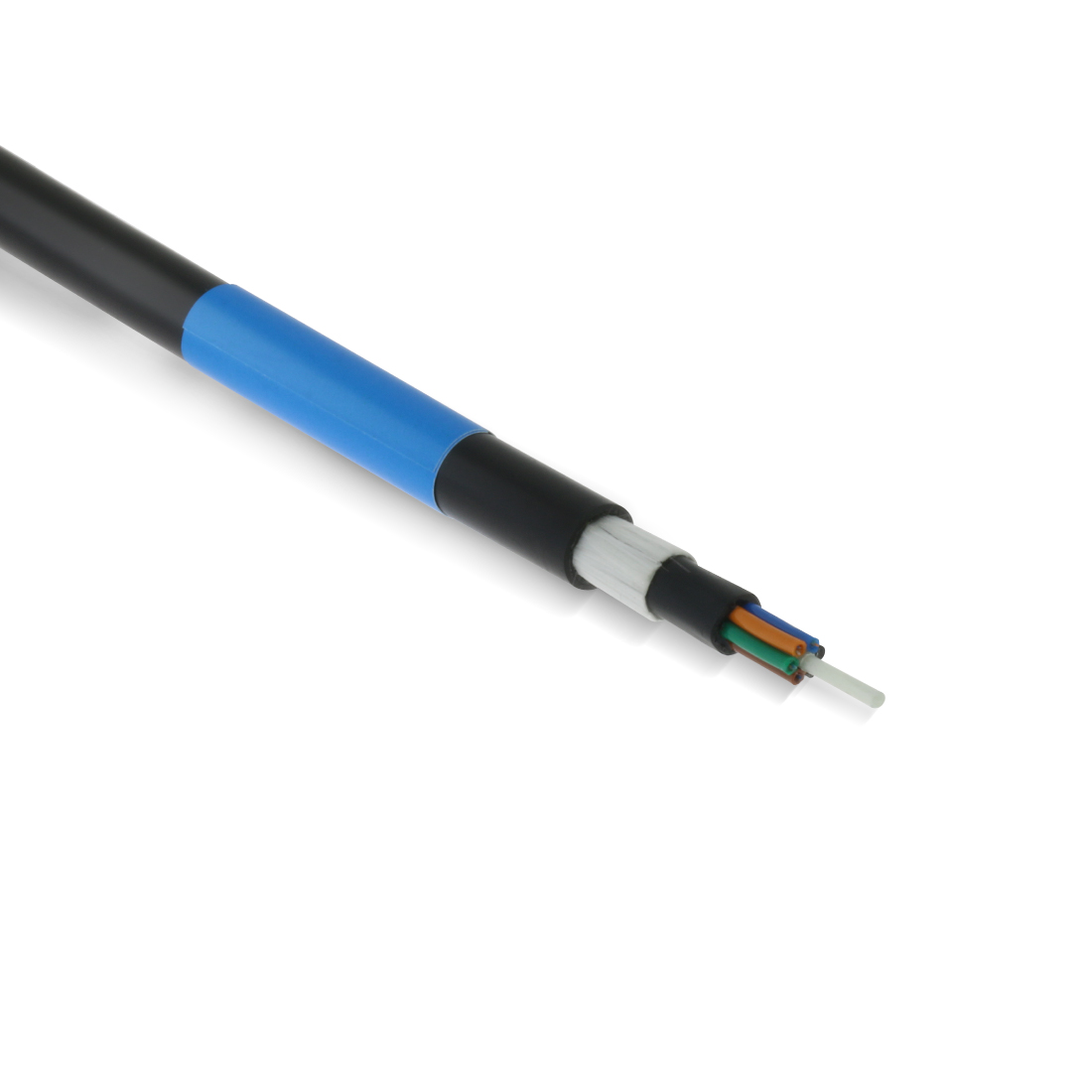

FOC-ADSS-12

Fiber – 12 Single Mode Fibers G652D
Fiber Quantity – 6 Pcs Fibers × 2 Loose Tube
Ripcord – 2 pcs
Outer Sheath – PE ( 10 +/-0.5 )
Maximum Allowable Tension(MAT)1300 N

FOC-ADSS-24

Fiber – 24 Single Mode Fibers G652D
Fiber Quantity – 6 Pcs Fibers × 4 Loose Tube
Ripcord – 2 pcs
Outer Sheath – PE ( 10.0+/-0.5 )
Maximum Allowable Tension(MAT)1600 N

FOC-ADSS-48

Fiber – 48 Single Mode Fibers G652D
Fiber Quantity – 8 Pcs Fibers × 6 Loose Tubes
Ripcord – 1 pcs
Outer Sheath – PE ( 10.0+/-0.5 )
Maximum Allowable Tension(MAT)1900 N

FOC-ADSS-144

Fiber – 144 Single Mode Fibers G652D
Fiber Quantity – 12 Pcs Fibers x 12 Loose Tubes
Ripcord – 1 pcs
Outer Sheath – PE (16.0+/-0.5)
Maximum Allowable Tension(MAT)2900 N

FOC-ADSS-96

Fiber – 96 Single Mode Fibers G652D
Fiber Quantity – 16 Pcs Fibers x 8 Loose Tubes
Ripcord – 1 pcs
Outer Sheath – PE (12.5+/-0.5)
Maximum Allowable Tension(MAT)2200 N

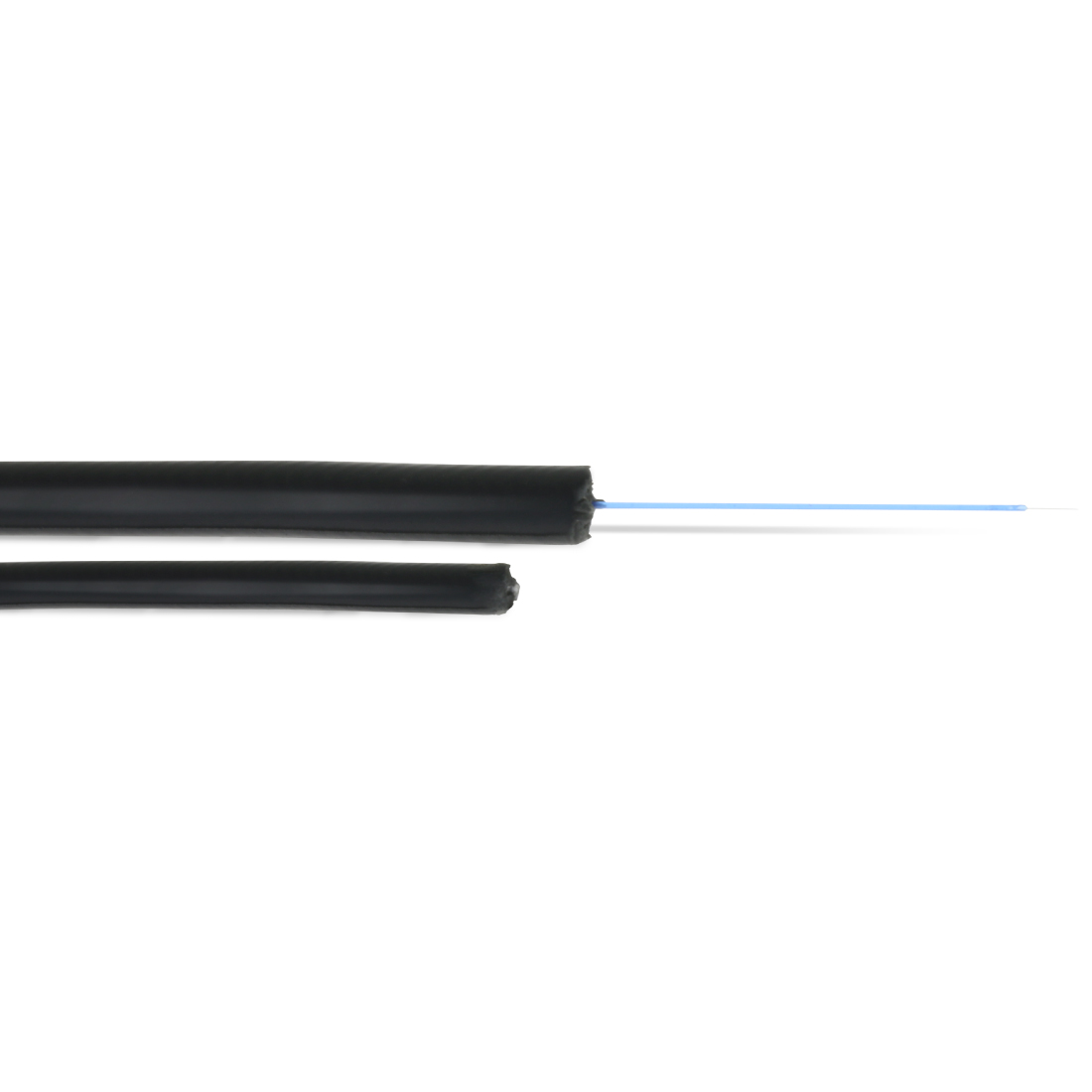

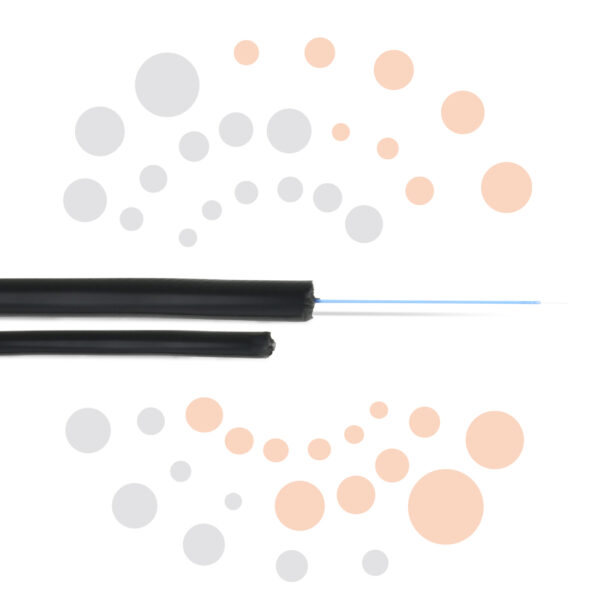

FOC-DROP- GJYXCH -1

Number of Optical Fibers – 1 Count
Crush Resistance Strength – Long Terms
1200 (N/100mm)

FOC-DROP- GJYXCH -2

Number of Optical Fibers – 2 Count
Crush Resistance Strength – Long Terms
1200 (N/100mm)

FOC-DROP- GJYXCH -4

Number of Optical Fibers – 4 Count
Crush Resistance Strength – Long Terms
1200 (N/100mm)

FOC-DROP- GJYXCH -6

Number of Optical Fibers – 6 Count
Crush Resistance Strength – Long Terms 1000
(N/100mm)
