CST-4000
Round Cable Strip & Ring Tool for Large Cables
Jonard’s fiber inspection microscope has 200x magnification, a focus wheel, and features 2.5 mm (FC/SC/ST) and 1.25mm (LC) adapters for use on most fiber connectors. The microscope also features the following:
Achromatic lens offers excellent imaging and integrated laser filters provide a safe experience (not intended for use with illuminated fibers)
Coaxial illumination provides clear view of connector face and fiber
LED light for longer battery life
Includes cushioned nylon case and three AAA batteries, microscope also has rubber cover for protection
CE certified to EU standards.
EZSR-23
The EZSR-23 Fiber Slit & Ring Tool has been specially designed to prepare 2 mm and 3 mm fiber optic cables for connecting with Fitel EZ!Fuse™ SC & LC Splice-On Connectors. This tool saves time and makes the connecting process extremely easy by having a ringing dial and slitting channel with preset lengths. This slit and ring tool also features the following:
- Adjustable ringing dial quickly changes between 6 mm, 13 mm, and 20 mm preset lengths
- Slits fiber cable at preset length of 6 mm so no need for tedious measurements
- 23 mm groove verifies bare fiber length before placing it in a fiber holder
- 7 mm marking verifies the length of the exposed fiber after placing in a fiber holder
- Spring-loaded design for easy operation

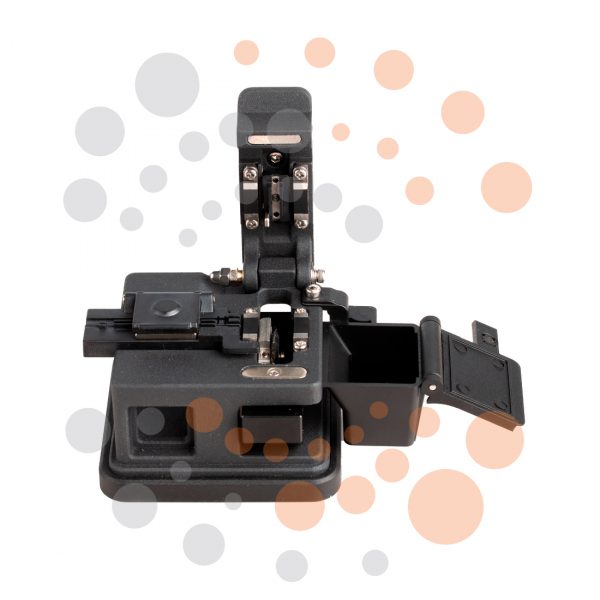

FC-500
Precision Fiber Cleaver
The Jonard Tools FC-500 precision fiber cleaver is designed to provide a precise cleave and prepare a fiber to be fusion spliced for 250 µm and 900 µm coated optical fiber. This fiber cleaver features the following:
Provides a cleave with a cutting angle of less than 0.5° for optimal fiber preparation for fusion splicing
Long life of 48,000 cuts with 16 position blades
Lightweight and rugged design for long term durability
Holds 250 µm and 900 µm fiber and comes with built in fiber trash can
Scaled holder for accurate cleave lengths from 5 to 20 mm (0.20" to 0.79")
Ideal for fiber technicians, fiber splicers, and anyone that needs to cleave a fiber optic cable prior to performing a fusion splice.

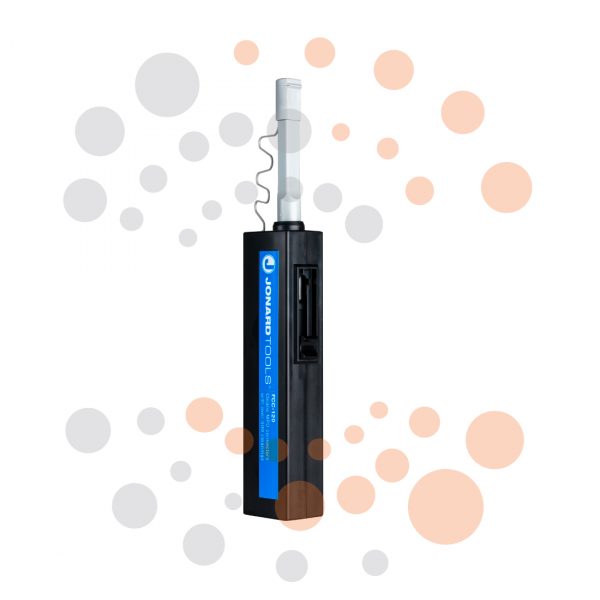

FCC-120
Can be used for over 500 cleanings and has a visual indicator to see how much cleaning material is left
Static-free housing and cleaning cloth make this tool perfect for ESD-safe work
Great for many applications (satellite communication systems, military and civilian maritime optical networks, aviation, broadcasting and HDTV, fiber to the antenna for WiMax and cellular networks, outside plant and fiber to the home, cable television head end, data centers, telecom central offices) and crush resistant to over 250N, impact resistant to survive drops over 1.5M
Jonard cleaners meet or exceed all current and emerging standards for fiber cleanliness in high power laser applications (Telcordia GR-2923-CORE, iNEMI, IEC 61300-3-35, Cisco EDCS 7027180)
Connector Type
MPO

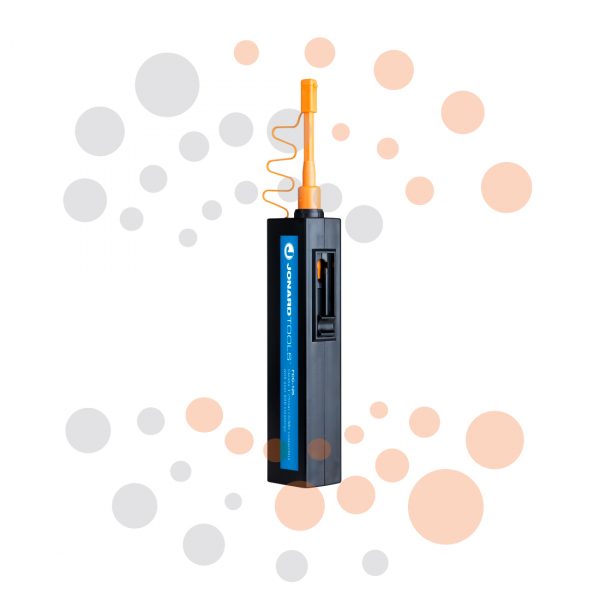

FCC-125
Fiber Connector Cleaner, 1.25 mm
Featuring a patented 360° rotational tip for extra-wide cleaning, the FCC-125 Fiber Connector Cleaner provides exceptional cleaning performance on 1.25 mm ferrules in recessed fiber optic adapters or individual LC and MU connectors. This fiber connector cleaner features the following:
Slide-Guide™ non-slip micro tape feeder guarantees consistent cleaning
Dual rotational tip and one-push operation makes cleaning ferrule end-faces quick and easy
Flip-open cap makes it easy to insert connectors for cleaning
Can be used for over 800 cleanings and has a visual indicator to see how much cleaning material is left
Static-free housing and cleaning cloth make this tool perfect for ESD-safe work
Great for many applications (satellite communication systems, military and civilian maritime optical networks, aviation, broadcasting and HDTV, fiber to the antenna for WiMax and cellular networks, outside plant and fiber to the home, cable television head end, data centers, telecom central offices) and crush resistant to over 250N, impact resistant to survive drops over 1.5M
Jonard cleaners meet or exceed all current and emerging standards for fiber cleanliness in high power laser applications (Telcordia GR-2923-CORE, iNEMI, IEC 61300-3-35, Cisco EDCS 7027180)
Connector Type
Connector Type: LC, MU

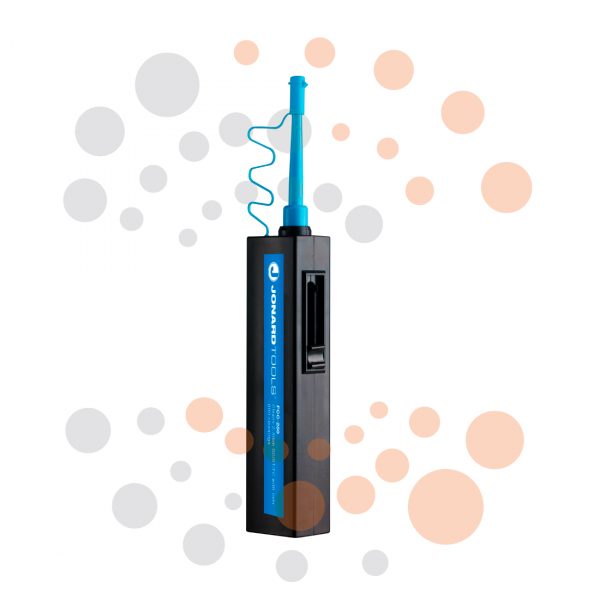

FCC-250
Featuring a patented 360° rotational tip for extra-wide cleaning, the FCC-250 Fiber Connector Cleaner provides exceptional cleaning performance on 2.5 mm ferrules in recessed fiber optic adapters or individual FC, SC, and ST connectors. This fiber connector cleaner features the following:
- Slide-Guide™ non-slip micro tape feeder guarantees consistent cleaning
- Dual rotational tip and one-push operation makes cleaning ferrule end-faces quick and easy
- Flip-open cap makes it easy to insert connectors for cleaning
- Can be used for over 800 cleanings and has a visual indicator to see how much cleaning material is left
- Static-free housing and cleaning cloth make this tool perfect for ESD-safe work
- Great for many applications (satellite communication systems, military and civilian maritime optical networks, aviation, broadcasting and HDTV, fiber to the antenna for WiMax and cellular networks, outside plant and fiber to the home, cable television head end, data centers, telecom central offices) and crush resistant to over 250N, impact resistant to survive drops over 1.5M
- Jonard cleaners meet or exceed all current and emerging standards for fiber cleanliness in high power laser applications (Telcordia GR-2923-CORE, iNEMI, IEC 61300-3-35, Cisco EDCS 7027180)

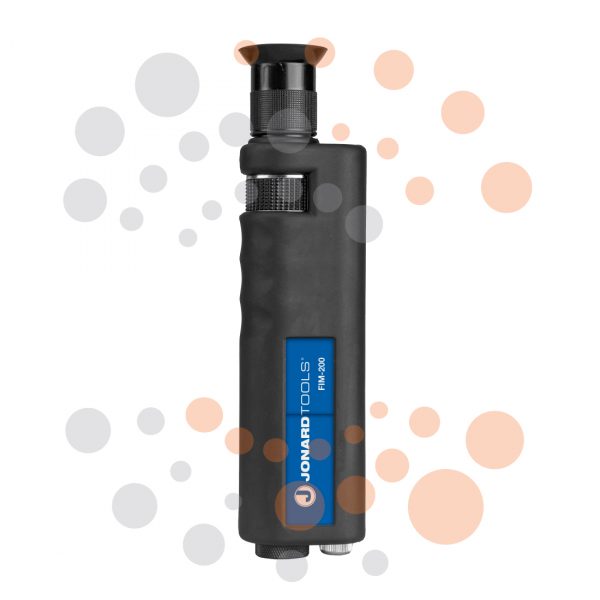

FIM-200
Fiber Inspection Microscopes
Jonard’s fiber inspection microscope has 200x magnification, a focus wheel, and features 2.5 mm (FC/SC/ST) and 1.25mm (LC) adapters for use on most fiber connectors. The microscope also features the following:
Achromatic lens offers excellent imaging and integrated laser filters provide a safe experience (not intended for use with illuminated fibers)
Coaxial illumination provides clear view of connector face and fiber
LED light for longer battery life
Includes cushioned nylon case and three AAA batteries, microscope also has rubber cover for protection
CE certified to EU standards

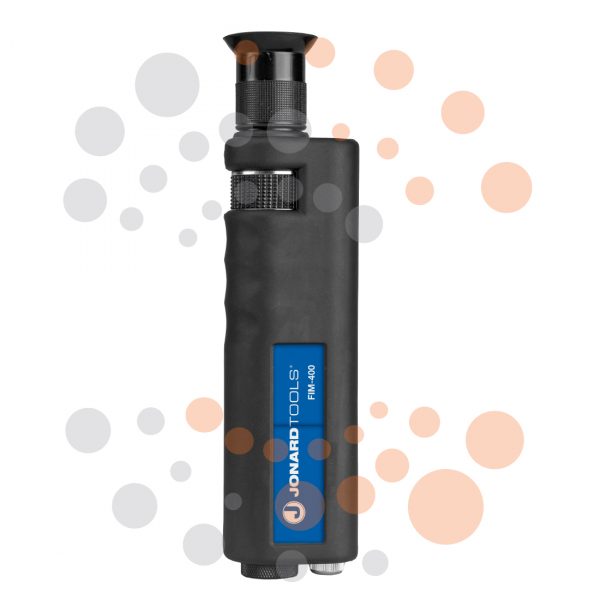

FIM-400
Fiber Inspection Microscopes
Jonard’s fiber inspection microscope has 400x magnification, a focus wheel, and features 2.5 mm (FC/SC/ST) and 1.25 mm (LC) adapters for use on most fiber connectors. The microscope also features the following:
Achromatic lens offers excellent imaging and integrated laser filters provide a safe experience (not intended for use with illuminated fibers)
Coaxial illumination provides clear view of connector face and fiber
LED light for longer battery life
Includes cushioned nylon case and three AAA batteries, microscope also has rubber cover for protection
CE certified to EU standards

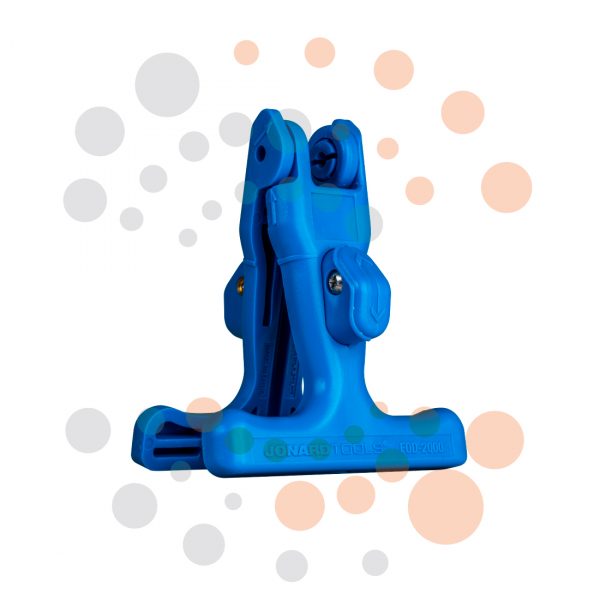

FOD-2000
The Jonard Tools PATENTED and award-winning FOD-2000 Fiber Optic Drop Cable Slitter simplifies the slitting of drop cable jackets at mid span or end sections and is perfect for FTTH technicians working with flat fiber drop cables. This drop cable slitter features the following:
- Designed to slit 0.250” flat drop cables as well as various other cables such as Super Essex Communications Series 6U, 6T tonable, W7, W7 tonable, 6U 24F, and 6T 24F tonable flat drop cables
- Slits flat cables 0.305" to 0.350" wide and 0.155" to 0.185" high, typically found in Corning SST-Drop flat cables with a jacket thickness of 0.03” to 0.04”
- Slits both sides of the jacket simultaneously, allowing easy access to fiber or strength members
- Can separate the jacket and strength members from the buffer tube leaving fiber undamaged
- Two reversible blades come preassembled and can be reversed when worn for double life
- Replacement Blades (FOD-RB25) can be purchased separately
- NSPE New Product Award (See below in Downloads section)

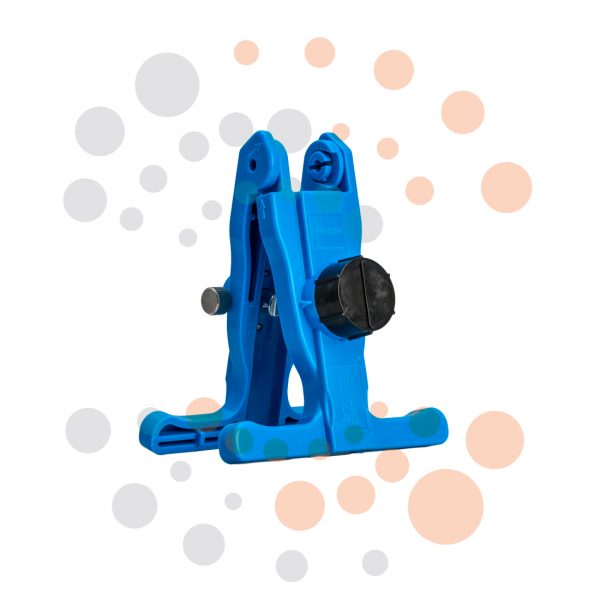

FOR-3000
FOR-3000 Fiber Optic Round Cable Slitter
The Jonard Tools FOR-3000 Round Cable Slitter is designed to easily and safely open round fiber optic cable jackets from 9 mm to 19 mm in diameter. It is ideal for any FTTH or maintenance technician that needs to work with round fiber optic cables, whether mid span or end-run. This round cable slitter features the following:
Slits cables with outer diameter from 9 mm to 19 mm
Provides easy fiber access for both mid span and end of cables
Ability to slit and ring all in one tool
Works on light armored cables also
Blade is easily replaceable with replacement blade: FOR-3000RB1
Hinged tool easily separates for quick cable loading for mid span slitting

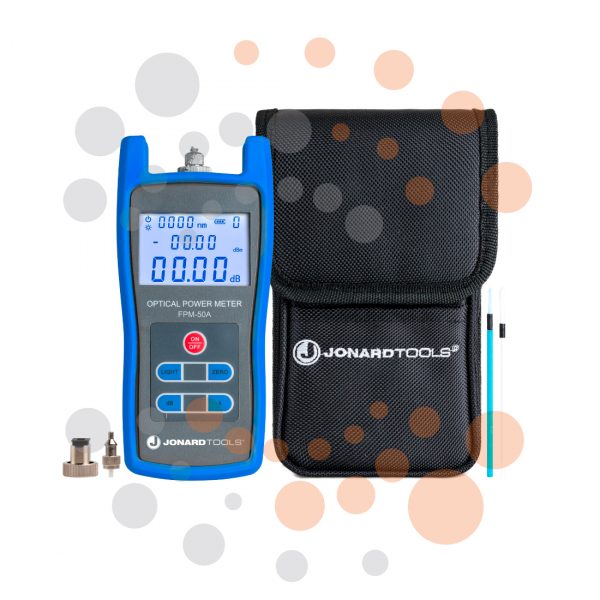

FPM-50A
Fiber Optic Power Meter
The Jonard Tools Fiber Optic Power Meter is perfect for measuring both the absolute optical power and relative power loss in fiber optic cables. This power meter features the following:
Measures a wide variety of wavelengths from 800-1650 nm, with a mere 0.01 dB resolution
Measures 6 preset calibrated wavelengths with high precision to determine absolute or relative power
Special function of the unit allows the device to be manually calibrated as needed
LED screen is backlit for viewing in low light locations and a 10 minute auto-off helps preserve battery life
Dust-proof button design and shatter-resistant sleeve protect the tool to last a lifetime
Comes with FC, SC, and LC adapters so that fiber connectors can be directly connected to the tool
The FC/SC adapters are for APC/PC/UPC connectors
The LC adapter is for PC/UPC connectors only

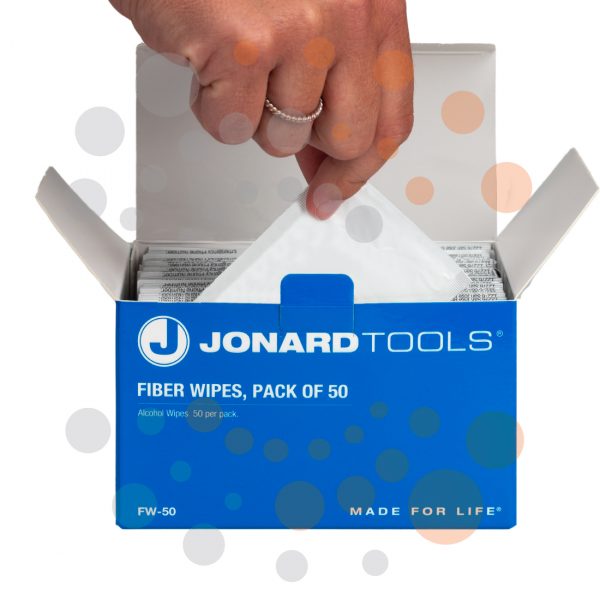

FW-50
