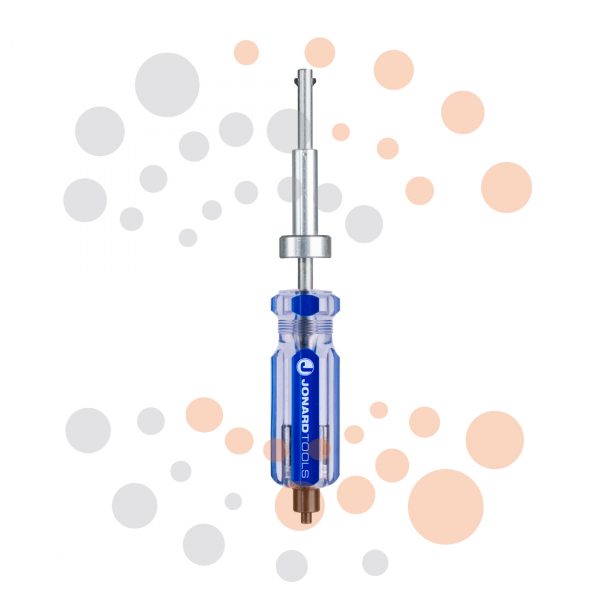

TT-7PT
TT-7PT
Back to products
Next product

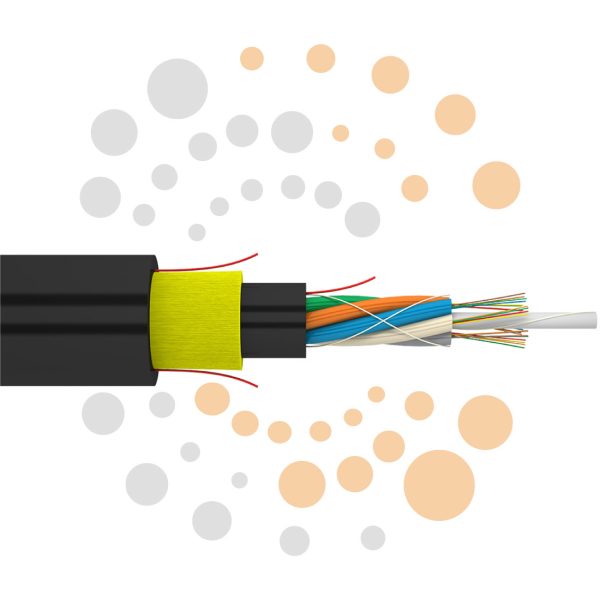

InAir ADSS DJ
InAir ADSS DJ

InAir ADSS

A cost-effective solution for use on short and medium spans. It will have a smaller diameter and be lighter compared to a double jacket design.

InAir ADSS (All-Dielectric Self-Supporting) is a cost-effective self-supporting aerial cable for use on short and medium spans up to 656 ft with maximum rated design tension up to 2,248 lb. This design is dry making it easy to strip. It has a wide range of operating temperatures from -76°F to +158°F and installation temperatures from -22°F to +158°F. It also features reduced weight and size and low susceptibility to ice and wind loads.

Compare
Add to wishlist
Category:
Description
Maximum rated design tension (MRDT) 899 lb (4 kN)
Crush 126 lb/in (0.22 kN/cm)
Fiber count, up to 72 (6х12) 96 (8х12) 144 (12х12)
Cable diameter, in 0.488 0.567 0.705
Cable weight, lb/ft 0.076 0.1 0.154
Minimum bending radius, in 7.3 8.5 10.6
Maximum rated design tension (MRDT) 1349 lb (6 kN)
Crush 126 lb/in (0.22 kN/cm)
Fiber count, up to 72 (6х12) 96 (8х12) 144 (12х12)
Cable diameter, in 0.488 0.567 0.705
Cable weight, lb/ft 0.077 0.101 0.155
Minimum bending radius, in 7.3 8.5 10.6
Maximum rated design tension (MRDT) 1798 lb (8 kN)
Crush 126 lb/in (0.22 kN/cm)
Fiber count, up to 72 (6х12) 96 (8х12) 144 (12х12)
Cable diameter, in 0.492 0.571 0.705
Cable weight, lb/ft 0.079 0.102 0.156
Minimum bending radius, in 7.4 8.6 10.6
Maximum rated design tension (MRDT) 2248 lb (10 kN)
Crush 126 lb/in (0.22 kN/cm)
Fiber count, up to 72 (6х12) 96 (8х12) 144 (12х12)
Cable diameter, in 0.496 0.575 0.709
Cable weight, lb/ft 0.081 0.104 0.158
Minimum bending radius, in 7.4 8.6 10.6
Maximum rated design tension (MRDT) 2698 lb (12 kN)
Crush 126 lb/in (0.22 kN/cm)
Fiber count, up to 72 (6х12) 96 (8х12) 144 (12х12)
Cable diameter, in 0.5 0.575 0.713
Cable weight, lb/ft 0.083 0.106 0.16
Minimum bending radius, in 7.5 8.6 10.7
Maximum rated design tension (MRDT) 3372 lb (15 kN)
Crush 126 lb/in (0.22 kN/cm)
Fiber count, up to 72 (6х12) 96 (8х12) 144 (12х12)
Cable diameter, in 0.508 0.583 0.717
Cable weight, lb/ft 0.086 0.109 0.164
Minimum bending radius, in 7.6 8.7 10.7
Maximum rated design tension (MRDT) 4496 lb (20 kN)
Crush 126 lb/in (0.22 kN/cm)
Fiber count, up to 72 (6х12) 96 (8х12) 144 (12х12)
Cable diameter, in 0.528 0.602 0.732
Cable weight, lb/ft 0.092 0.114 0.17
Minimum bending radius, in 7.9 9.1 11
